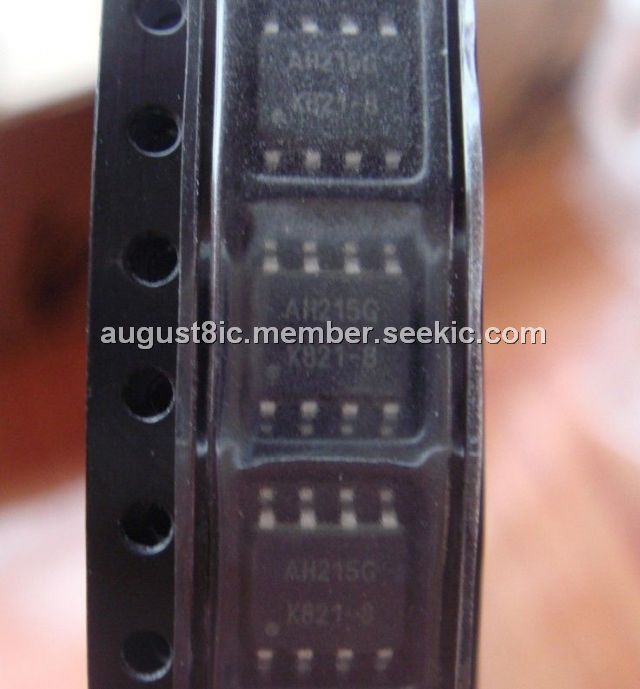

Product Summary
The AH215-S8G is a high dynamic range driver amplifier in a low-cost surface mount package. The InGaP/GaAs HBT is able to achieve superior performance for various narrowband-tuned application circuits with up to +46 dBm OIP3 and +31.5 dBm of compressed 1-dB power. The part is housed in a lead-free/green/RoHScompliant SOIC-8 package. The device is 100% RF and DC tested. The applications of the AH215-S8G include Final stage amplifiers for Repeaters, Mobile Infrastructure, Defense / Homeland Security.
Parametrics
AH215-S8G absolute maximum ratings: (1)Operating Case Temperature: -40 to +85℃; (2)Storage Temperature: -65 to +150℃; (3)RF Input Power (continuous): +26 dBm; (4)Device Voltage: +8 V; (5)Device Current: 900 mA; (6)Device Power: 5 W; (7)Junction Temperature: +250 ℃.
Features
AH215-S8G features: (1)400-2300 MHz; (2)+31.5 dBm P1dB; (3)+46 dBm Output IP3; (4)18 dB Gain @ 900 MHz; (5)Single Positive Supply (+5 V); (6)Lead-free/green/RoHS-compliant SOIC-8 SMT Pkg.

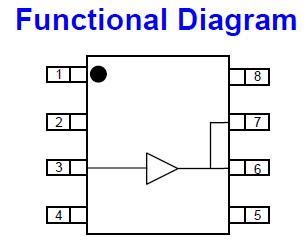

Diagrams
