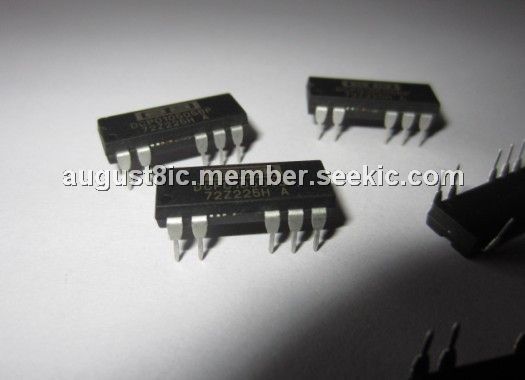

Product Summary

The DCP010505BP is an unregulated, isolated DC/DC converter. Requiring a minimum of external components and including on-chip device protection, the DCP010505BP provides extra features such as output disable and synchronization of switching frequencies. The use of a highly-integrated package design results in highly reliable products with a power density of 40W/in3 (2.4W/cm3). This combination of features and small sizes makes the DCP010505BP suitable for a wide range of applications.

Parametrics

DCP010505BP absolute maximum ratings: (1)Input voltage 5V models: 7 V; (2)Input voltage 15V models: 18 V; (3)Input voltage 24V models: 29 V; (4)Storage temperature: -40 to +125 ℃; (5)Lead temperature (soldering, 10s): +270 ℃; (6)Power 100% full load: 0.97 W; (7)Oscillator frequency (fOSC)Switcing frequency = fOSC/2: 800 kHz.

Features

DCP010505BP features: (1)Up To 85% Efficiency; (2)Thermal Protection; (3)Device-to-Device Synchronization; (4)Short-Circuit Protection; (5)EN55022 Class B EMC Performance; (6)UL1950 Recognized Component; (7)JEDEC DIP-14 and SOP-14 Packages.

Diagrams

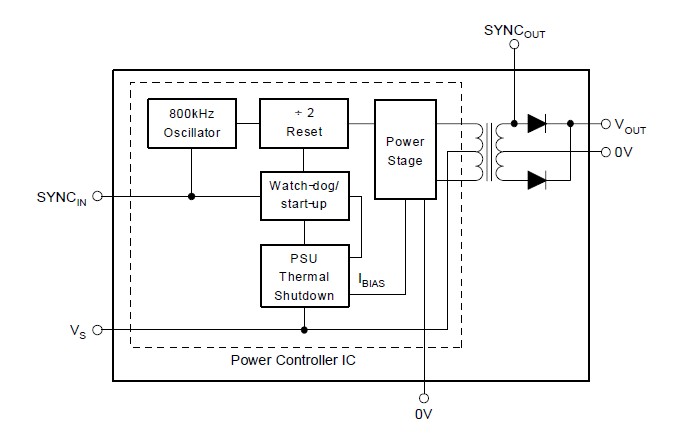

DCP010505BP pin connection
