Product Summary

The GP1S093HCZ0F is a compact-package, phototransistor output, transmissive photointerrupter, with opposing emitter and detector in a molding that provides non-contact sensing. The compact package series is a result of unique technology combing transfer and injection molding. The GP1S093HCZ0F has a low profi le, and wide gap.

Parametrics

GP1S093HCZ0F absolute maximum ratings: (1)Forward current IF: 50 mA; (2)Reverse voltage VR: 6 V; (3)Power dissipation P: 75 mW; (4)Collector-emitter voltage VCEO: 35 V; (5)Emitter-collector voltage VECO: 6 V; (6)Collector current IC: 20 mA; (7)Collector power dissipation PC: 75 mW; (8)Total power dissipation Ptot: 100 mW; (9)Operating temperature Topr: -25 to +85 ℃; (10)Storage temperature Tstg: -40 to +100 ℃; (11)Soldering temperature Tsol: 260 ℃.

Features

GP1S093HCZ0F features: (1)Transmissive with phototransistor output; (2)Highlights : Compact Size; (3)Key Parameters : Gap Width : 2mm, Slit Width (detector side): 0.3mm, Package : 4.5×2.6×2.9mm; (4)Lead free and RoHS directive compliant.

Diagrams

GP1S093HCZ0F pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

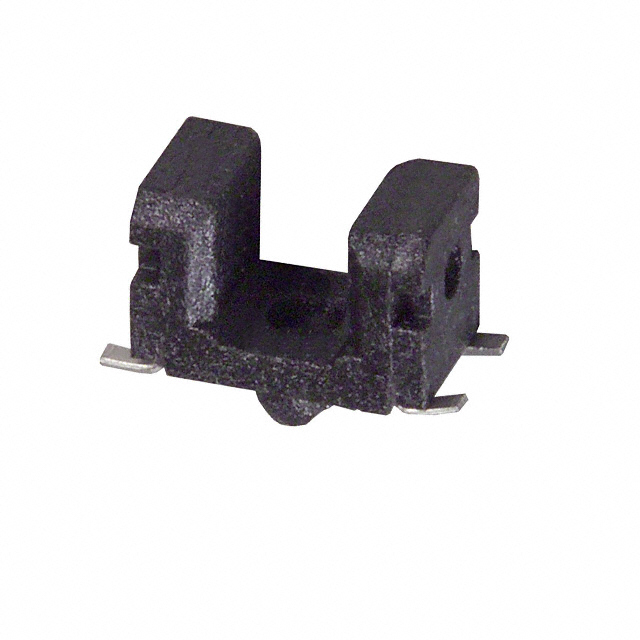

GP1S093HCZ0F
GP1S093HCZ0F

Sharp Microelectronics

Optical Switches, Transmissive, with Phototransistor Output Photointerrupter 2.0mm gap

Data Sheet

0-1: $0.33
1-10: $0.29
10-100: $0.20
100-500: $0.16
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

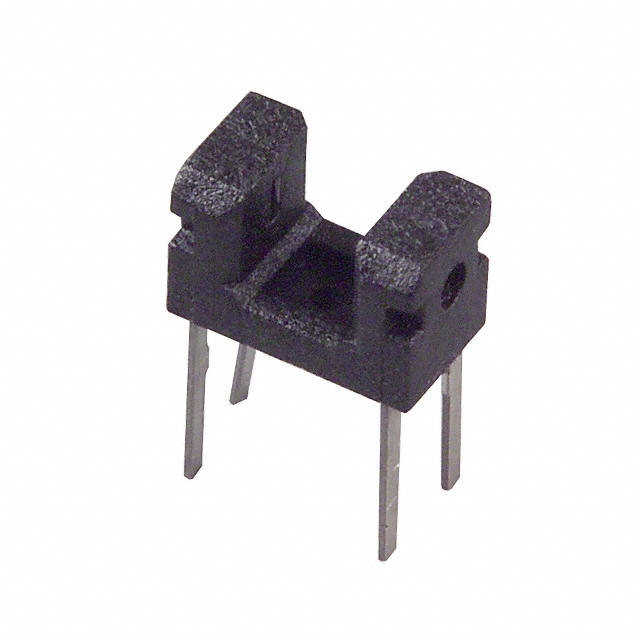

GP1S093HCZ
GP1S093HCZ


PHOTOINTERRUPTER SLOT 2.0MM PCB

Data Sheet

Negotiable
GP1S093HCZ0F
GP1S093HCZ0F

Sharp Microelectronics

Optical Switches, Transmissive, with Phototransistor Output Photointerrupter 2.0mm gap

Data Sheet

0-1: $0.33
1-10: $0.29
10-100: $0.20
100-500: $0.16

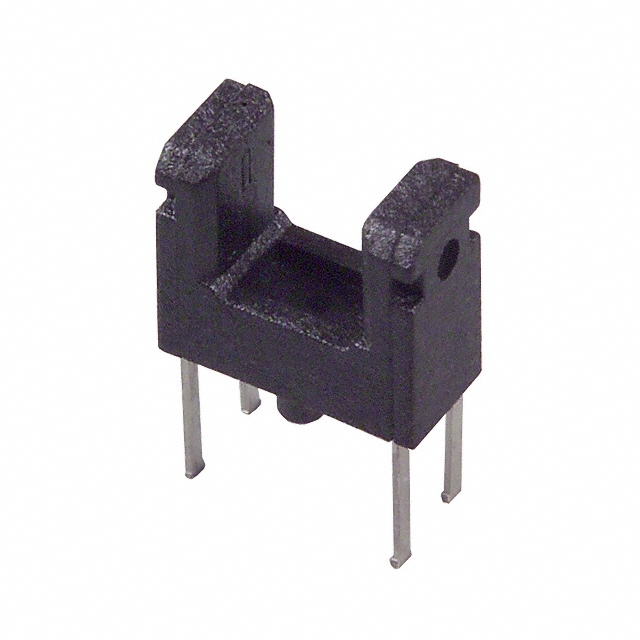

GP1S094HCZ
