PVT422S-TPBF

Photovoltaic Relay, 25 mA, 7V, 35W, SOP-8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.30~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.30~1.50

PartNumber:: PVT422S-TPBF

Brand:: International Rectifier - IR | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Melody's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-07

From Other Seller

Part Number:PVT422S-TPBF
US $1.30 - 1.50
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

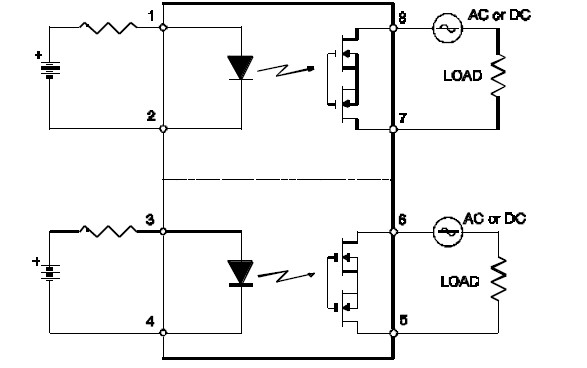

The PVT422S-TPBF is a Photovoltaic Relay. The PVT422S-TPBF is a dual-pole, normally open solid-state relay that can replace electromechanical relays in many applications. The PVT422S-TPBF utilizes International Rectifier’s HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode (LED) which is optically isolated from the photovoltaic generator.

Parametrics

PVT422S-TPBF absolute maximum ratings: (1)Max. Control Current for Off-State Resistance @TA=+25℃: 0.4 mA; (2)Control Current Range (Caution: current limit input LED, see Fig.5): 2.0 to 25 mA; (3)Max. Reverse Voltage: 7.0 V; (4)Operating Voltage Range: 0 to ±400 V(DC or AC peak); (5)Max. Load Current @ TA=+40℃ 5mA Control (See Fig.1)(single and dual channel operation): 120 mA; (6)Max. Peak Load Current (10ms max. duration)(single and dual channel operation): 350 mA; (7)Max. On-State Resistance @TA=+25℃ For 50mA Pulsed Load, 5mA Control: 35 W; (8)Max. Off-State Leakage @TA=+25℃, ±320V: 1.0 μA; (9)Max. Turn-On Time @TA=+25℃ (See Fig. 6)For 50mA, 100 VDC Load, 5mA Control: 2.0 ms; (10)Max. Turn-Off Time @TA=+25℃ (See Fig. 6)For 50mA, 100 VDC Load, 5mA Control: 2.0 ms; (11)Max. Output Capacitance @ 50VDC: 12 pF; (12)Max. Capacitance, Input-Output: 1.0 pF; (13)Max. Pin Soldering Temperature (10 seconds max.): +260℃; (14)Ambient Temperature Range: Operating -40 to +85 ℃, Storage -40 to +100℃.

Features

PVT422S-TPBF features: (1)HEXFET Power MOSFET output; (2)Bounce-free operation; (3)4,000 VRMS I/O isolation; (4)Linear AC/DC operation; (5)Solid-State reliability; (6)UL recognition and CSA certification pending.
