Product Summary
The S29AL016D90TFI02 is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes or 1,048,576 words. The S29AL016D90TFI02 is offered in 48-ball FBGA, and 48-pin TSOP packages. The S29AL016D90TFI02 can also be programmed in standard EPROM.
Parametrics
S29AL016D90TFI02 absolute maximum ratings: (1) Storage Temperature Plastic Packages: -65°C to +150°C; (2) Ambient Temperature with Power Applied: -65°C to +125°C; (3) Voltage with Respect to Ground: VCC (Note 1) = -0.5V to +4V, A9, OE#, and RESET# = -0.5V to +12.5V, All other pins = -0.5V to Vcc+0.5V; (4) Output Short Circuit Current: 200mA.
Features
S29AL016D90TFI02 features: (1) A hardware method of locking a sector to prevent any program or erase operations within that sector; (2) Sectors can be locked in-system or via programming equipment; (3) Temporary Sector Unprotect feature allows code changes in previously locked sectors.

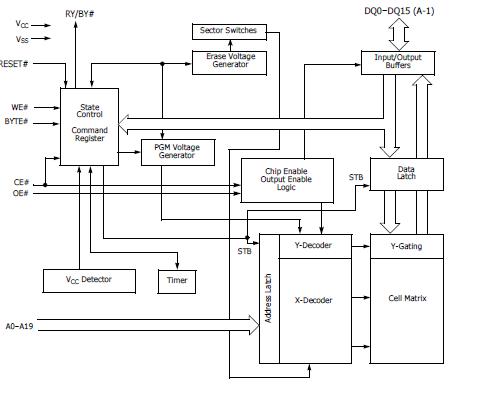

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 S29AL016D90TFI020 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
