Product Summary

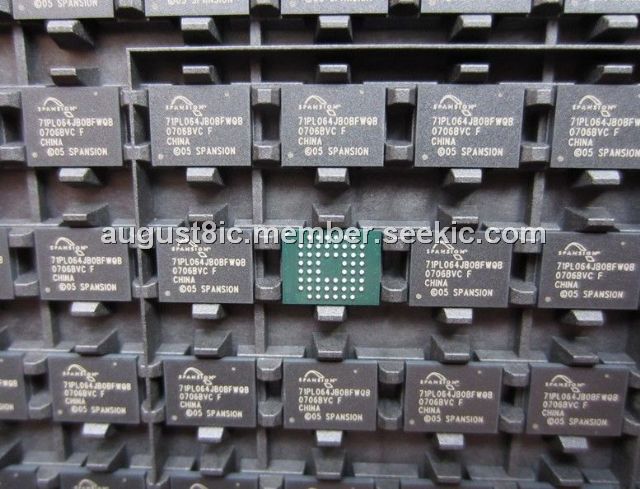

The S71PL064JB0BFWQ is a Stacked Multi-Chip Product （MCP） Flash Memory. The S71PL064JB0BFWQ is product line of stacked Multi-Chip Product (MCP) packages and consists of: One or more S29PL (Simultaneous Read/Write) Flash memory die, pSRAM or SRAM. The 256Mb Flash memory consists of two S29PL127J devices. In this case, CE#f2 is used to access the second Flash and no extra address lines are required.
Parametrics
S71PL064JB0BFWQ absolute maximum ratings: (1)Power supply voltage: 2.7 V to 3.1 V; (2)Operating Temperature: –25℃ to +85℃, –40℃ to +85℃.
Features
S71PL064JB0BFWQ features: (1)Power supply voltage of 2.7 V to 3.1 V; (2)High performance: 65 ns (65 ns Flash, 70 ns pSRAM); (3)Packages: 7 x 9 x 1.2mm 56 ball FBGA, 8 x 11.6 x 1.2mm 64 ball FBGA, 8 x 11.6 x 1.4mm 84 ball FBGA; (4)Operating Temperature: –25℃ to +85℃, –40℃ to +85℃.
Diagrams
 |
