Product Summary

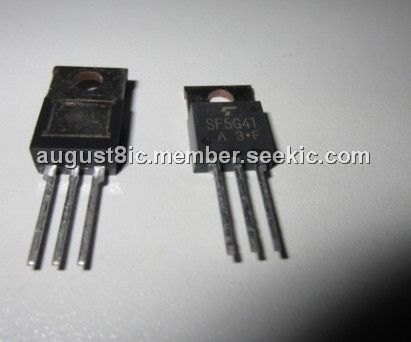

The SF5G41A is a silicon planar type thyristor.
Parametrics
SF5G41A absolute maximum ratings: (1)Repetitive Peak Off-State Voltage: 400V; (2)Non-Repetitive Peak Reverse Voltage (Non-Repetitive<5ms, Tj = 0~125℃): 500V; (3)Average On-State Current (Half Sine Waveform Tc = 91℃)IT (AV): 5 A; (4)R.M.S On-State Current IT (RMS): 7.8 A; (5)Peak One Cycle Surge On-State Current (Non-Repetitive)ITSM: 88 A; (6)I2t Limit Value I2t: 32 A2s; (7)Critical Rate of Rise of On-State Current di / dt: 100 A / μs; (8)Peak Gate Power Dissipation PGM: 5 W; (9)Average Gate Power Dissipation PG (AV): 0.5 W; (10)Peak Forward Gate Voltage VFGM: 10 V; (11)Peak Reverse Gate Voltage VRGM: -5 V; (12)Peak Forward Gate Current IGM: 2 A; (13)Junction Temperature Tj: -40~125 ℃; (14)Storage Temperature Range Tstg: -40~125 ℃.
Features
SF5G41A features: (1)Repetitive Peak Off-State Voltage : VDRM = 400, 600V; (2)Repetitive Peak Reverse Voltage : VRRM = 400, 600V; (3)Average On−State Current : IT (AV)= 5A; (4)Gate Trigger Current : IGT = 15mA (MAX.).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SF5G41A |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SF5G41A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
