Product Summary

The STF201-22.TCT is a combination EMI filter and line termnation device with integrated TVS diodes for use on downstream USB ports. The STF201-22.TCT is constructed using a proprietary technology that allows passive components and TVS diodes to be integrated in the same package. Applications of the STF201-22.TCT include: USB Hubs, Portable electronics, Printers, Monitors, Servers, Desktop, and Notebook computers.

Parametrics

STF201-22.TCT absolute maximum ratings: (1) Steady-state power Pk: 100mW; (2) ESD air discharge per IEC 61000-4-2 VESD: 15kV, ESD contact discharge per IEC 61000-4-2 VESD: 15kV; (3) Leading soldering temperatur TL: 260°C (10 sec.) ; (4) Operating temperature Tj: -40 to +125°C; (5) Storage temperature Tstg: 055 to +150°C.

Features

STF201-22.TCT features: (1) Bidirectional EMI/RFI filtering and line termination with integrated ESD protection; (2) ESD protection for USB power (VBUS) and data lines (D+ & D-) to IEC 61000-4-2 Level 4; (3) Filtering and termination for two USB data lines; (4) Different series resistors for impedance matching; (5) Low TVS operating voltage (5.25V) ; (6) Low leakage current; (7) Low capacitance; (8) Solid-state technology.

Diagrams

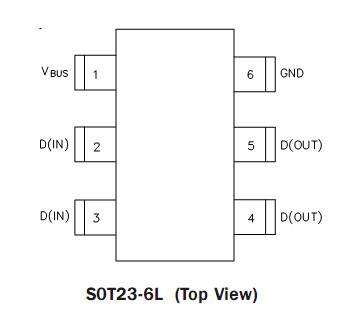

STF201-22.TCT Pin Configuration
