Product Summary

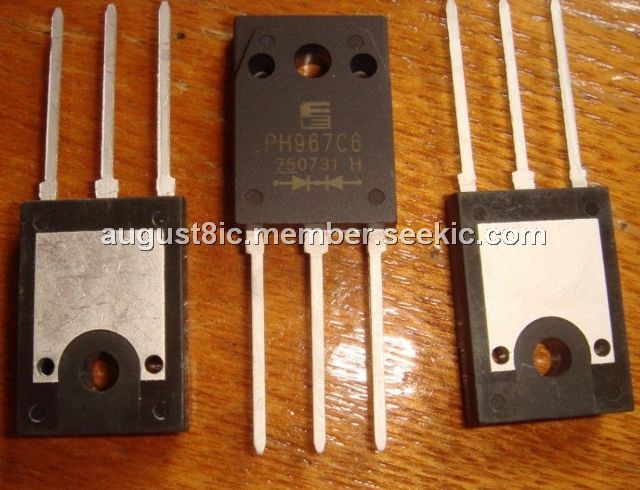

The PH967C6 is a silicon diode. The PH967C6 is a product which optimizes the diode characteristic for the PFC circuit. The PH967C6 is a product by which the trr characteristic was valued more than VF though there is a relation of the trade-off up to VF and Trr.
Parametrics
PH967C6 absolute maximum ratings: (1) Repetitive peak reverse voltage VRRK: 600V; (2) Non-repetitive peak reverse voltage VRSM: 600V; (3) Surge peak forward current Ips: 40A (tw≤200ns) ; (4) Peak forward current Ip: 30A; (5) Average output current Io: 10A (Square wave duty =1/2, Tc=110°C) ; (6) Non-repetitive surge current IFSM: 40A (Sine wave 10ms 1shot) ; (7) Operating junction temperature: -40 to 150°C; (8) Storage temperature Tstg: -40 to 150°C.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PH967C6 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
PH965C6 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PH967C6 |
Other |
|
Data Sheet |
Negotiable |
|
||||
