Product Summary

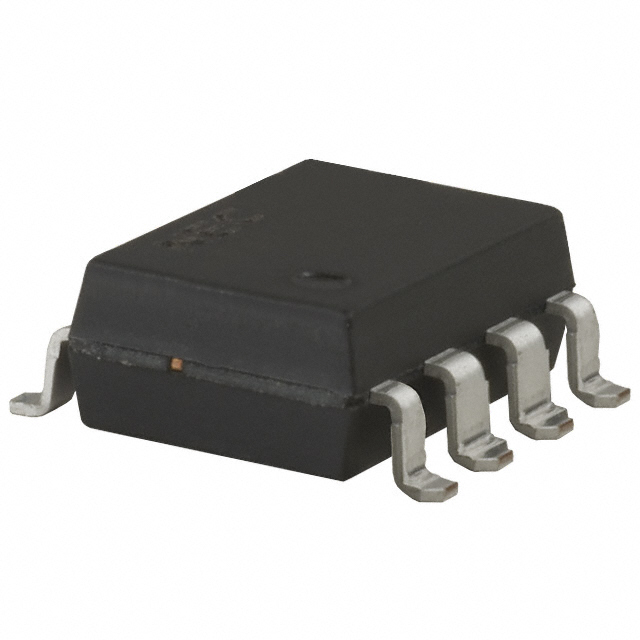

The PS8602L-E3-A is an 8-pin high speed photocoupler containing a GaAIAs LED on input side and a P-N photodiode and a high speed amplifier transistor on output side on one chip. PS8602 is in a plastic DIP (Dual In-line Package). The PS8602L-E3-A is lead bending type (Gull wing) for surface mount. The applications of the PS8602L-E3-A include Interface circuit for various instrumentations, control equipments, Computer and peripheral manufactures.
Parametrics
PS8602L-E3-A absolute maximum ratings: (1)Forward Current, IF: 25 mA; (2)Reverse Voltage, VR: 5 V; (3)Power Dissipation, PD: 45 mW; (4)Supply Voltage, VCC: 35 V; (5)Output Voltage, VO: 35 V; (6)Output Current, IO: 8 mA; (7)Power Dissipation, PC: 100 mW; (8)Isolation Voltage, BV: 5 000 Vr.m.s.; (9)Operating Temperature, TA: -55 to +100℃; (10)Storage Temperature, Tstg: -55 to +150℃.
Features
PS8602L-E3-A features: (1)High common mode transient immunity (OMR, OML: 2000 V/s MIN.); (2)High supply voltage (VCC = 35 V MAX.); (3)High speed response (tPHL, tPLH: 0.8 s MAX.); (4)High isolation voltage (BV: 5 000 Vr.m.s. MIN.); (5)TTL, CMOS compatible with a resistor; (6)Taping product number (PS8602L-E3); (7)UL recognized [File No. E72422(s)]; (8)VDE0884 recognized: option.
Diagrams
 |
