Product Summary

The W24257AJ-15 is a high speed, low power CMOS static RAM organized as 32768 × 8 bits that operates on a single 5-volt power supply. This device is manufactured using Winbond’s high performance CMOS technology.

Parametrics

W24257AJ-15 absolute maximum ratings: (1)Supply Voltage to VSS Potential: -0.5 to +7.0 V; (2)Input/Output to VSS Potential: -0.5 to VDD +0.5 V; (3)Allowable Power Dissipation: 1.0 W; (4)Storage Temperature: -65 to +150℃; (5)Operating Temperature: 0 to +70℃.

Features

W24257AJ-15 features: (1)High speed access time: 10/12/15/20 nS (max.); (2)Low power consumption: - Active: 400 mW (typ.); (3)Single +5V power supply; (4)Fully static operation; (5)All inputs and outputs directly TTL compatible; (6)Three-state outputs; (7)Available packages: 28-pin 300 mil SOJ, 330 mil SOP, skinny DIP and standard type one TSOP (8 mm × 13.4 mm).

Diagrams

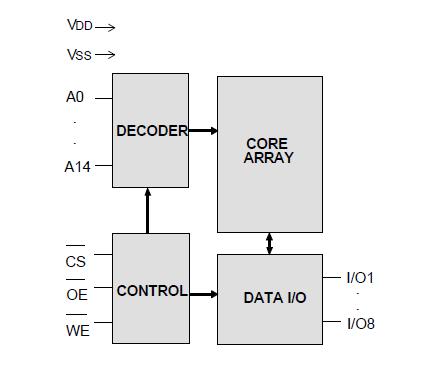

W24257AJ-15 block diagram
